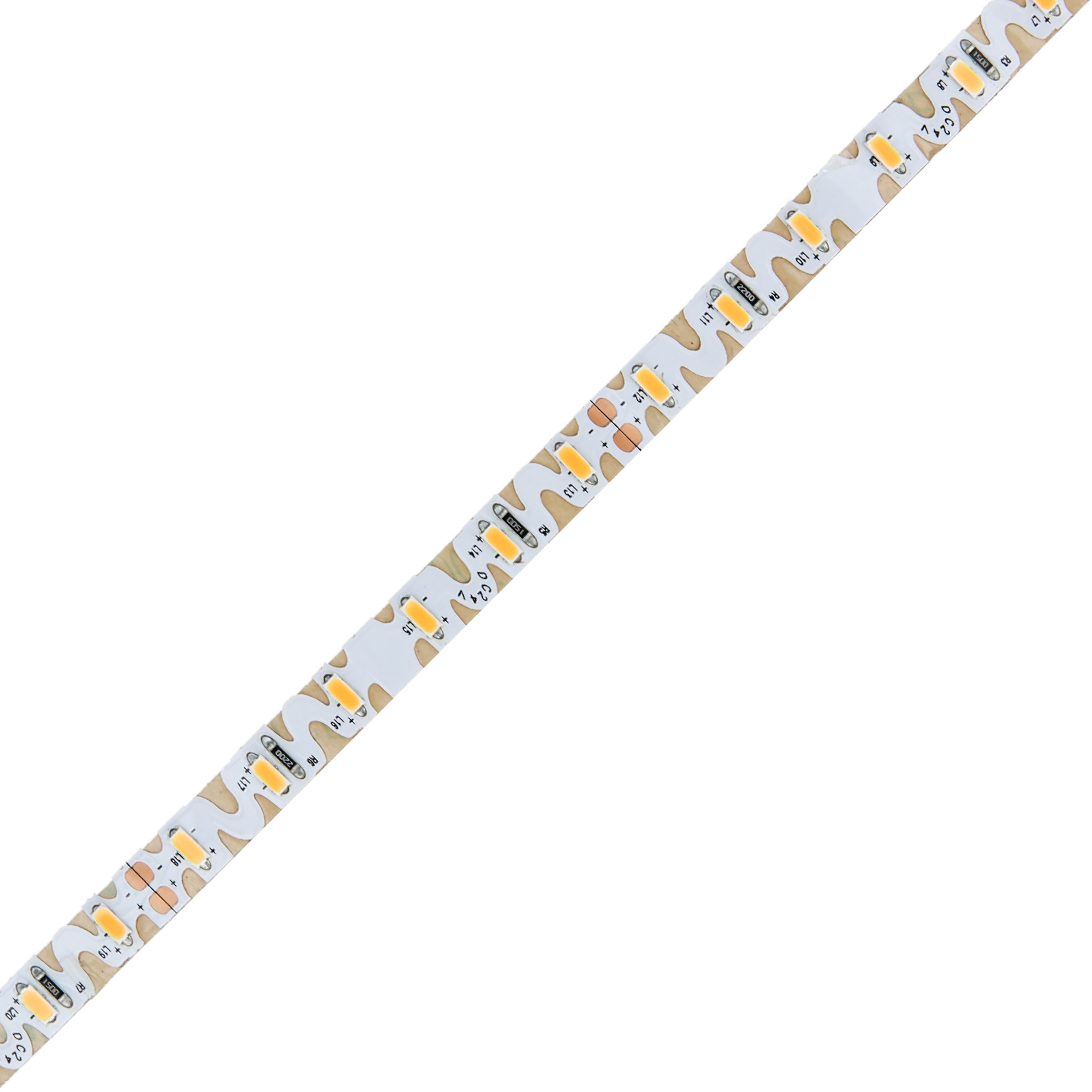

High CRI 95+ Bendable LED (BC Series)

Yujileds^® BC series flexible strip provides industrial-grade high CRI with full CCT options. It is extremely versatile and can be installed on a variety of linear and curved surfaces alike which demands high color quality and homogeneous lighting distribution. The 24V DC strip can be cut and connected individually every 3 LEDs (25 mm), and the enhanced 3oz copper traces with precise SMT resistors provide consistently high power and brightness. The improved adhesive backing is upgraded for easy installation.

Product code

Input Voltage (V)

CCT

Power (W/m)

Luminous Flux (lm/m)

CRI

TM-30

Rf / Rg

TLCI

F3180010.27

2700K

Max. 6

370

>95

92 / 98

F3180010.56

5600K

Max. 6

410

>95

92 / 98

Flexible Strip Layout

Feature

– Industrial grade high CRI performance, TLCI & TM-30 specified

– Ultra consistent and precise color with Yujileds^® SimpleBinning technology

(equal to <3-step MacAdam)

– 24V DC, 60 LEDs per meter, can be cut every 6 LEDs (100mm)

– Up to 440lm per meter

– 5000mm (length) × 6mm (width), 90g per reel

– Improved adhesive backing for easy installation

– Lifespan > 54000 hours (IES LM80)

Application

– High-end architectural/residential lighting

– Photographic/broadcast lighting

– Human-centric lighting

Resource

Datasheet:

[F3180010.00-2.0] YJ-BC-SRB-2835L-24V
