yujileds

VTC 135XL

Yujileds VTC technology succeeds in broadening the spectrum coverage to 400nm – 730nm, which is 40% more coverage than a standard LED spectrum, in addition, the VTC technology eliminates the sharp blue peaks then achieves the homogeneous spectral power distribution hence it mimics 95% similarity to the sunlight within the visible spectrum.

Product code If (mA) Vf (V) Luminous Flux (lm) CCT CRI TM-30
Rf / Rg
TLCI
P3150007.27 240 16-24 120-220 2700K >95 97/100 99
P3150007.32 145-250 3200K >95 97/100 99
P3150007.56 250-425 5600K >95 97/100 99
P3150007.65 250-425 6500K >95 97/100 99
Feature

– Full spectrum

– Industrial high CRI performance

– 5W power consumption

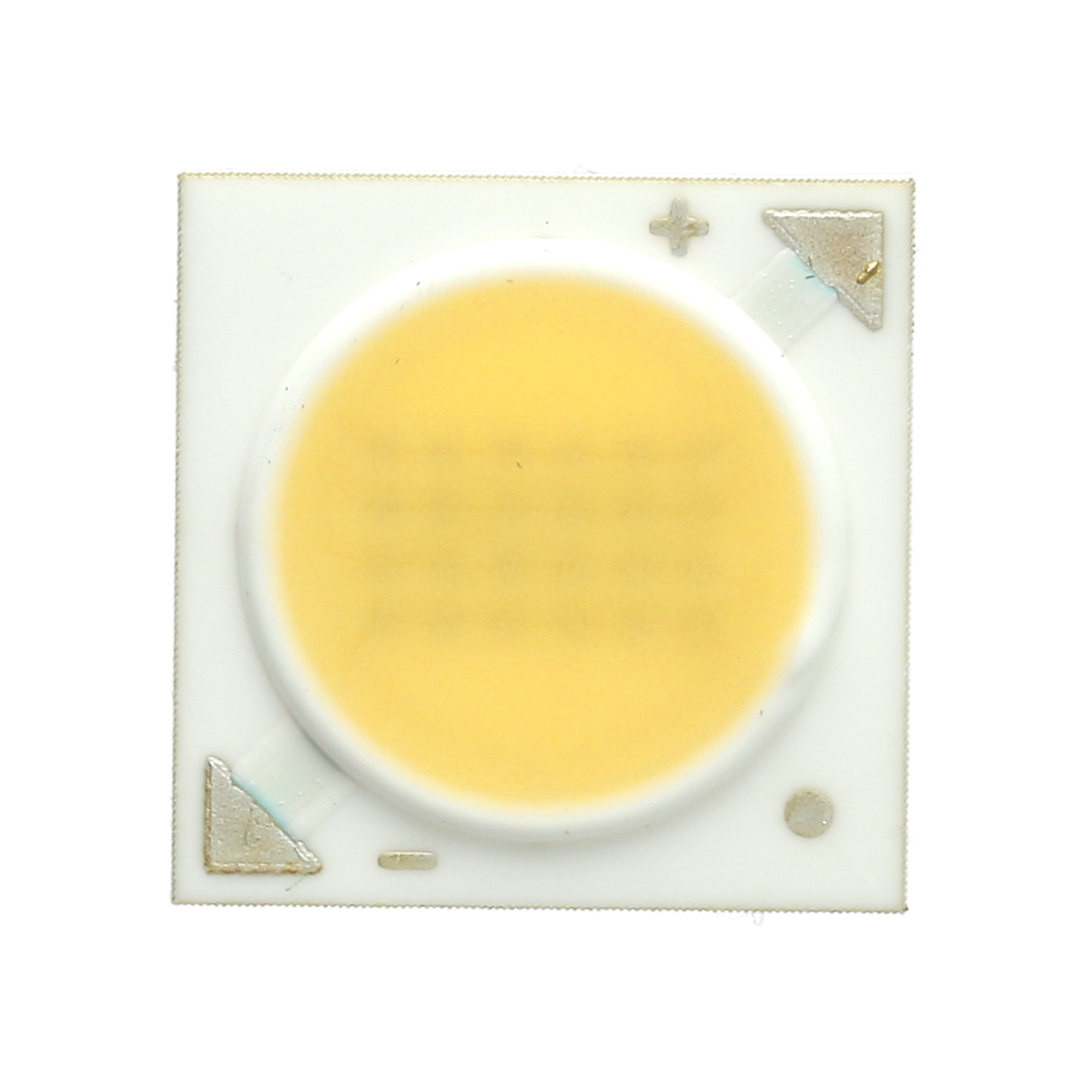

– 13.5 mm × 13.5 mm chip-on-board LED

– TLCI & TM-30 specified

Application

– High-end architectural lighting

– Photographic/broadcast lighting

– Photoelectric device and relevant research
