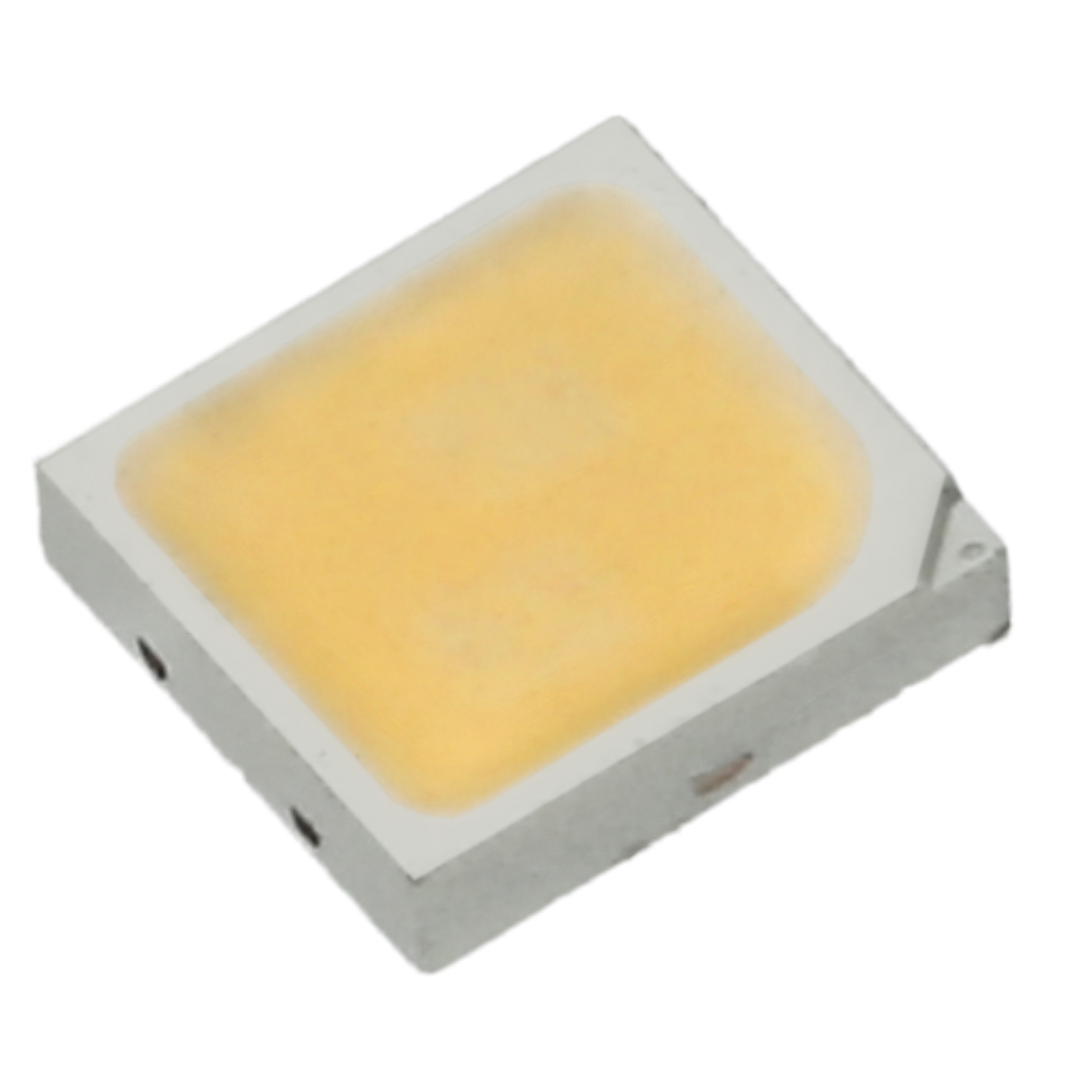

AP 3030 (0.2W)

With 98% spectrum similarity to the sun, the AP series LED provides 2700K, 5000K and 6500K options in the universal 3030 package. Up to140lm/W, this full-spectrum LED is optimized in the luminous efficacy and avoids any UV or IR radiation.

Up to 99 CRI and 98 Rf (TM-30), the AP 3030 LED is suitable for any industrial or commercial applications that require outstanding lighintg quality.

Package Part
number
Size Forward
current (If)
Forward
voltage (Vf)
Luminous
flux
Color
temperature
CRI / Ri
(R1-R15)
TM-30
Rf / Rg
TLCI
3030 P3200007.27 3.0mm × 3.0mm 65mA 2.8V – 3.2V 21lm – 23lm 2700K2700K >95 / 90 98 / 100 99
P3200007.50 23lm – 26lm 6500K5000K
P3200007.65 23lm – 26lm 6500K6500K
Feature

• Industrial high and  consistent CRI

• Optimized efficacy

TM-30 & TLCI specified

• Ultra homogeneous spectrum with UV and IR free

• 3.0mm×3.0mm universal package

• SimpleBinning solution

Application

• High-end architectural lighting

• Horticulture lighting

• Photoelectric device and relevant research

• Photographic/broadcast lighting

• Human-centric lighting
